Pre-season working in Barcelona gave us a primary correct have a look at the 2022 Formulation 1 automobiles and a specific supply of intrigue is the outer fringe of the flooring. Mark Hughes seems to be at why that is such an important space and why groups like Mercedes have settled for distinctive approaches – with a technical illustration from Giorgio Piola.

Due to the broad variation in cooling layouts and the related sidepod design of the brand new era of automobiles, the best way wherein groups are striving to maximise the effectiveness of the underbody venturi tunnels is equally assorted. Probably the most seen space of this differentiation is within the wildly totally different contouring and element of the outer edges of the ground.

Though accelerating the airflow excessive of that ground, down the facet of the sidepods (by way of the coke bottle part) is crucially necessary in maximising the effectiveness of the tunnels beneath, the contouring of the very edges of the ground is all about manipulating what the airflow is doing beneath.

ANALYSIS: Why some teams have been forced into makeshift floor modifications in Barcelona


1238773681

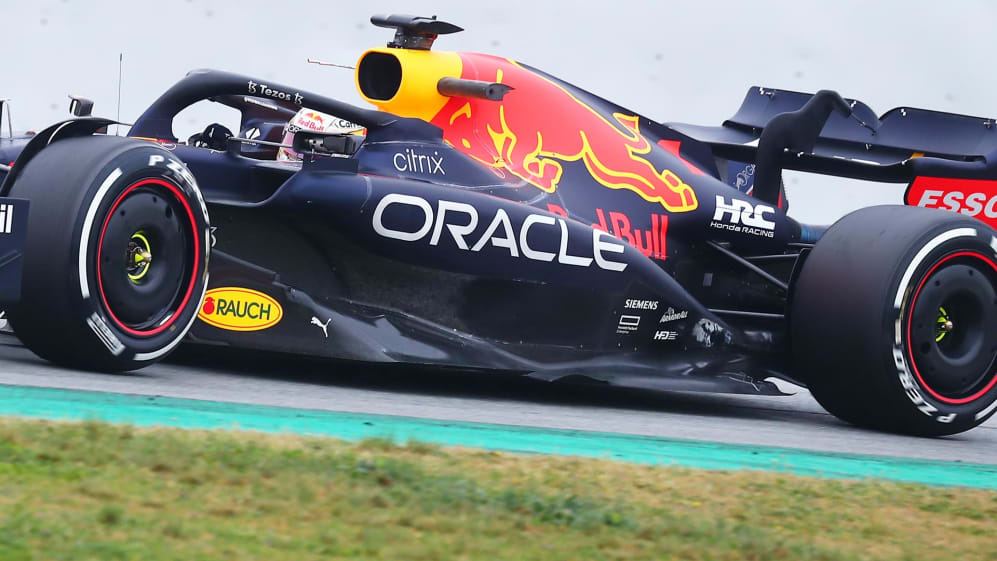

Contours across the edges of the Purple Bull RB18B manipulate airflow round – and beneath – the automotive

On the ahead finish of the ground’s periphery, the downward ramp overlaying the start of the venturi tunnel accentuates the stress distinction between there and the ground beneath.

The ramp creates the next stress on the exterior floor, growing the stress distinction between there and the underfloor in that early a part of the venturi tunnel, inflicting extra air to be sucked into the tunnel inlets.

Because the air is directed across the facet nook of the decrease sidepod by the outermost of the 4 permitted fences, it’ll lose a few of its power – so behind that ramped part, most automobiles characteristic an additional ‘curl’ the place the ground edge rises up gently, then again down once more.

ANALYSIS: Why Alfa Romeo have gone bold with innovative C42 design


1238802360

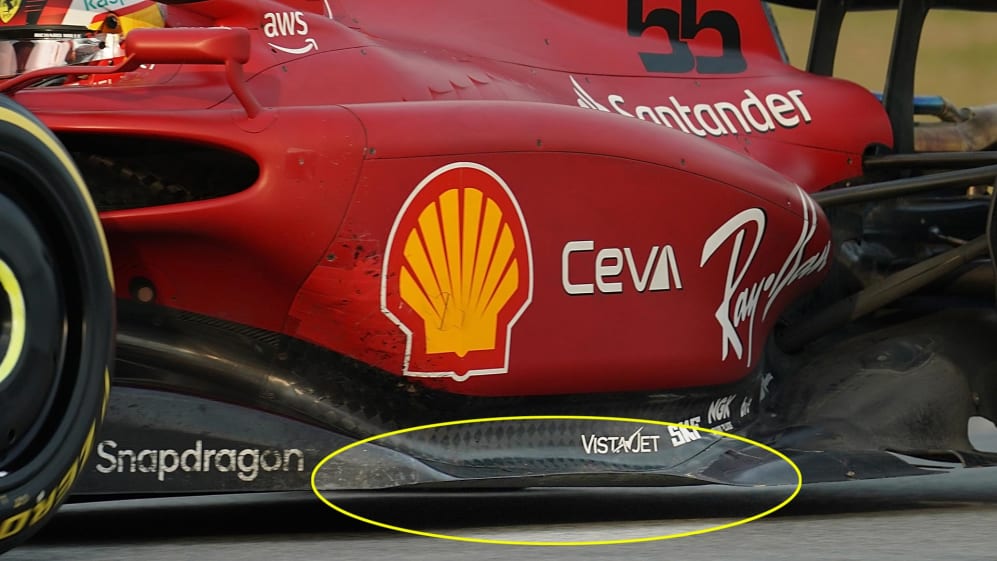

The ‘curl’ on the outer fringe of the Ferrari’s ground

This ‘curl’ (above) can be about energising the airflow beneath, maximising its power and its capacity to tug the automotive into the bottom.

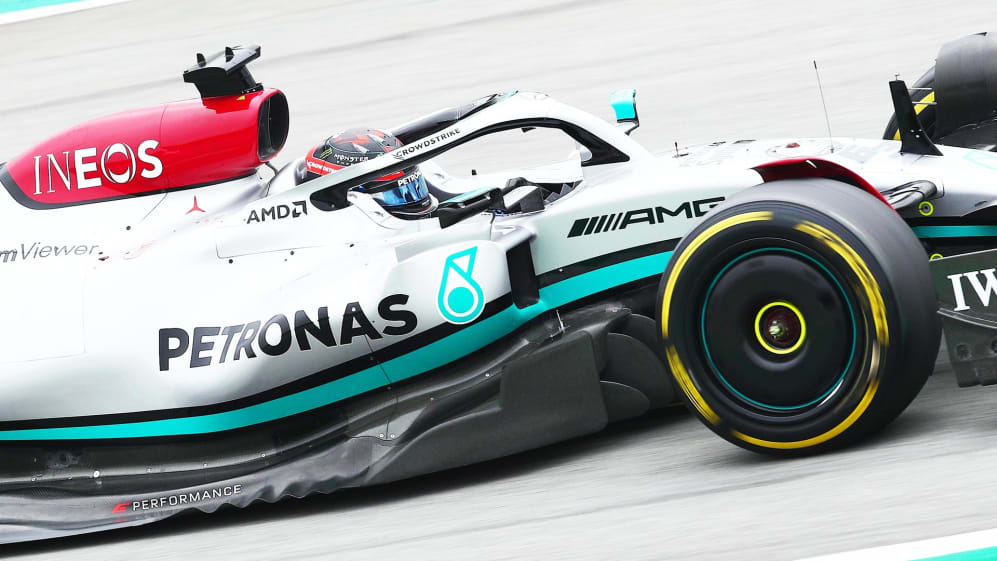

However relatively than a single curl, the Mercedes (under) has a collection of small ripples which is able to create anti-clockwise vortices of air all the best way down the edges of the ground, stopping the air across the again from being sucked into the diffuser’s low-pressure space and lowering its efficiency.


1373034308

The sharply raised forefront of the ground overlaying the downward ramp of the venturi tunnel creates a constructive stress above. The outer vane on the vanguard directs the airflow across the nook of this ramp and the collection of mini ground curls produce vortices which then additional energise this airflow.

This can be a very comparable design to that utilized by Mercedes (and Aston Martin) within the first half of final 12 months – and for a lot the identical purpose, regardless of the regulated change in underfloor design.

Mercedes deserted the characteristic with their Silverstone 2021 update, as a substitute utilizing a unique bargeboard association as they sought to re-balance the proportion of stream between the underfloor and across the sides. However with the bargeboards now not there, they’ve reverted to this earlier characteristic.

READ MORE: The 5 key questions from 2022 pre-season running in Barcelona

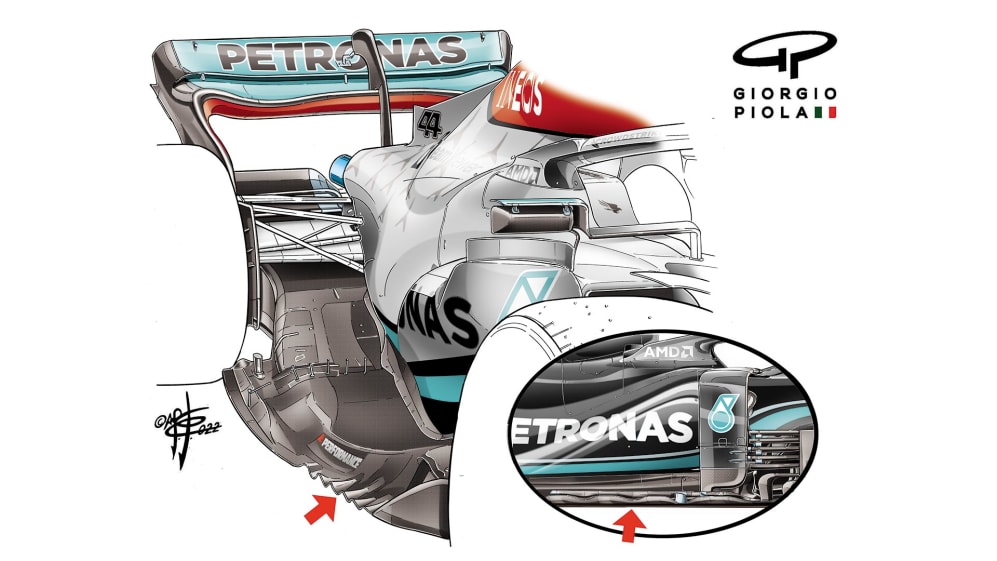

For Barcelona working, Mercedes reverted to an method that they had utilized in 2021 (inset)

Within the Barcelona session it was maybe working too successfully as, like each different automotive to a higher or lesser diploma, it was struggling aerodynamic porpoising because the rear ground was pulled down by the suction to the purpose the place the airflow beneath would stall.

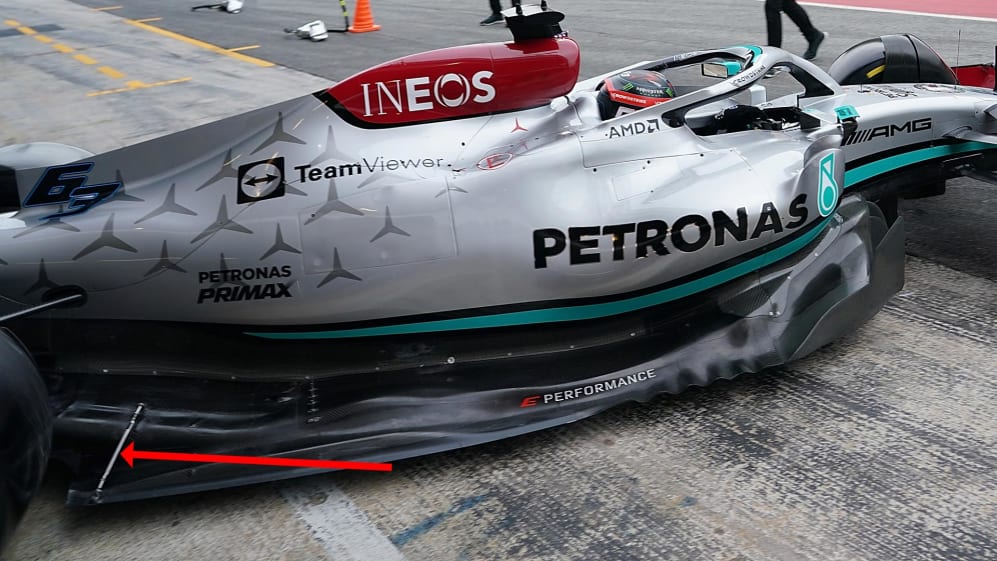

A makeshift resolution of a small tie rod (under) stiffened the rear outer fringe of the ground, permitting the Mercedes to set some aggressive instances.

It will likely be attention-grabbing to see what the totally thought of options will probably be to the porpoising when the automobiles subsequent convene in Bahrain’s Official Pre-Season Test.


1238801832

The tie rod on the rear of Mercedes W13’s ground
